Description

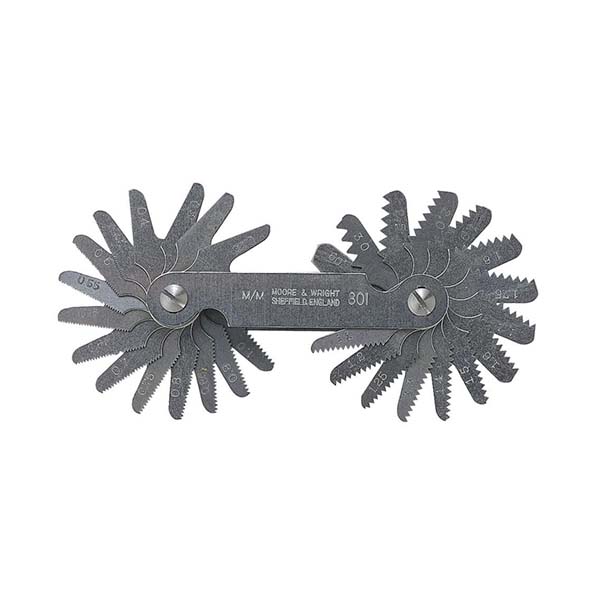

SCREW PITCH GAUGE
Accurately milled steel blades
Designed to check both internal and external threads forms
Marked with nominal size on each blade
All blades fixed in a steel sleeve
Screw cutting gauge included. 60º
SCREW PITCH : ISO Metric
BLADES : 22
THREADS PER INCH : 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.75, 0.80, 1.0, 1.25, 1.50, 1.75, 2.0, 2.50, 3.0, 3.5, 4.0, 4.50, 5.0, 5.50, 6.0
SKU : MAW809
Made in England
